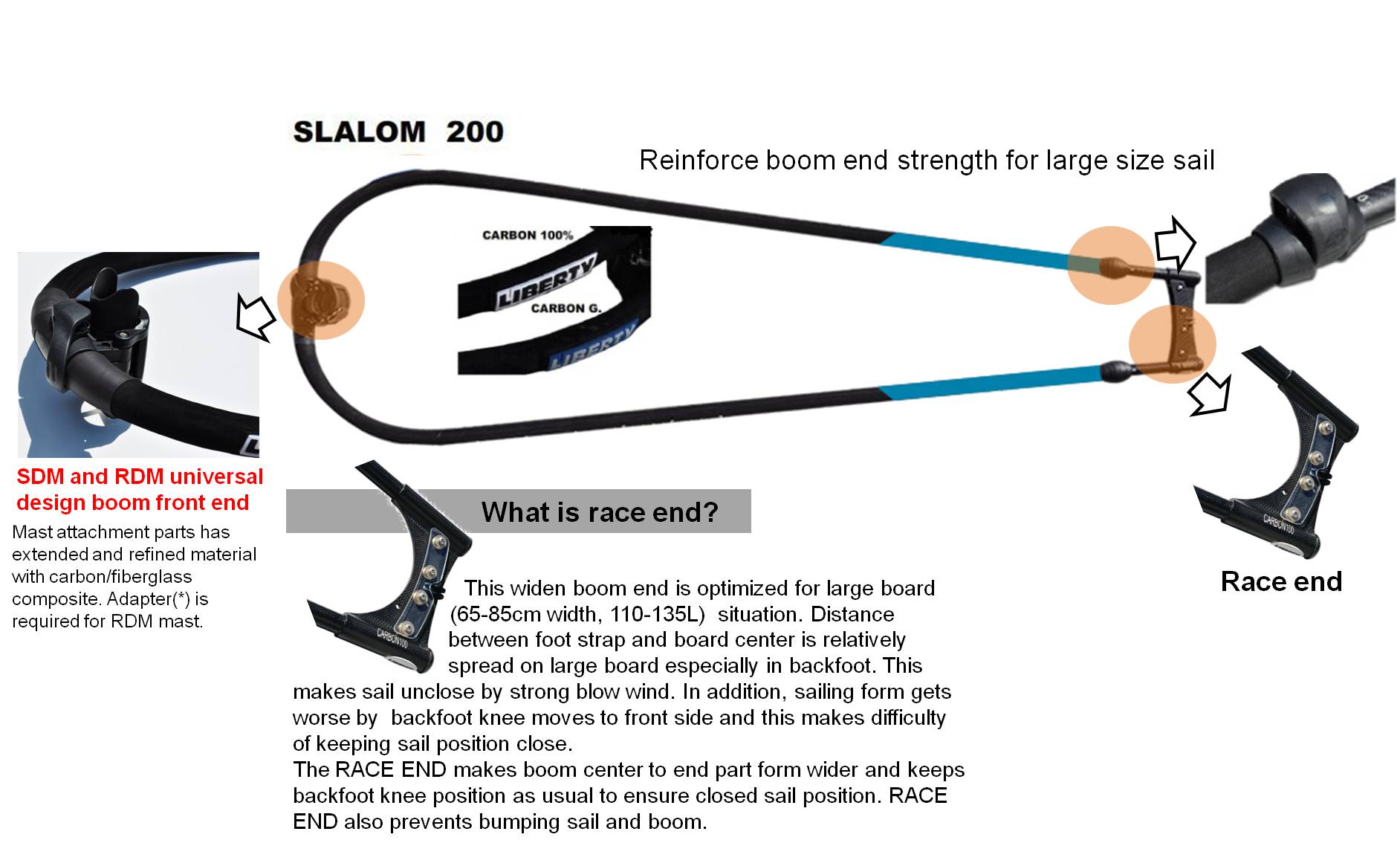

CARBON MONOCOQUE BOOMS :
LIBERTY improved boom carb shape since 2012. Designed for keeping best mast position, more uprightness
by changing sail side hand position but same position for mast side hand. Carbon formed boom
attachment increases strengh and brings secure mast hold. Carbon G. boom , carbon and glass fibre combined
boom, increased strength in front side for tighten mast hold. Both Carbon and Carbon G. boom is attached
SDM mast type boom clamp. Adapter is required for RDM mast.
Slalom model grip diameter is 29mm and 26mm(since 2015),
Wave model grip diameter is 26mm.
CARBON 100% |
|
| Realize high grade strength and light wight by 100% carbon prereg. |
| |
Size |
Adjust |
Grip diameter |
Boom end |
Weight |
Price |
| WAVE |
140-200 |
60cm |
26mm |
T-END |
2.3kg |
JPY 88,000 |
| SLALOM |
155-215 |
60cm |
29mm |
T-END |
2.5kg |
JPY 96,000 |
| [NEW] |
155-215 |
60cm |
26mm |
T-END |
2.4kg |
JPY 106,000 |
| |
175-235 |
60cm |
29mm |
T-END |
2.8kg |
JPY 101,000 |
| [NEW] |
175-235 |
60cm |
26mm |
T-END |
2.7kg |
JPY 113,000 |
| |
175-235 |
60cm |
29mm |
RACE END |
2.9kg |
JPY 103,000 |
| |
200-260 |
60cm |
29mm |
RACE END |
3.2kg |
JPY 112,000 |
| [NEW] |
210-270 |
60cm |
29mm |
RACE END |
TBD |
JPY 125,000 |
Boom parts
| CARBON 100% RACE END | : | JPY 30,000
|
| CARBON 100% T-END | : | JPY 27,000
|
|
|
CARBON G. |
|
| Leading edge component consists with pure carbon(100%) aiming to reduce
deflection. Arm and boom-end component consists with carbon and fiberglass.
Only 100g extra weight compare to CARBON 100% model by high quality carbon
and fiberglass.
|
| |
Size |
Adjust |
Grip diameter |
Boom end |
Weight |
Price |
| WAVE |
140-200 |
60cm |
26mm |
T-END |
2.4kg |
JPY 59,500 |
| SLALOM |
155-215 |
60cm |
29mm |
T-END |
2.5kg |
JPY 66,500 |
| |
175-235 |
60cm |
29mm |
T-END |
2.9kg |
JPY 70,500 |
| |
175-235 |
60cm |
29mm |
RACE END |
3.0kg |
JPY 72,500 |
| |
200-260 |
60cm |
29mm |
RACE END |
3.3kg |
JPY 79,500 |
Boom parts
| CARBON G RACE END | : | JPY 25,000
|
| CARBON G T-END | : | JPY 22,000
|
|
|
CARBON NX -NEW- |
|
|
Combine advanced fiberglass layup and carbon prereg. Continuous investigation for
new math of price per performance!
|
| |
Size |
Adjust |
Grip diameter |
Boom end |
Weight |
Price |
| WAVE |
140-190 |
50cm |
26mm |
T-END |
- |
JPY 48,500 |
| SLALOM |
155-205 |
50cm |
29mm |
T-END |
- |
JPY 50,500 |
| |
175-225 |
50cm |
29mm |
T-END |
- |
JPY 53,500 |
| |
175-225 |
50cm |
29mm |
RACE END |
- |
JPY 55,500 |
| |
200-250 |
50cm |
29mm |
RACE END |
- |
JPY 62,500 |
|
Tips

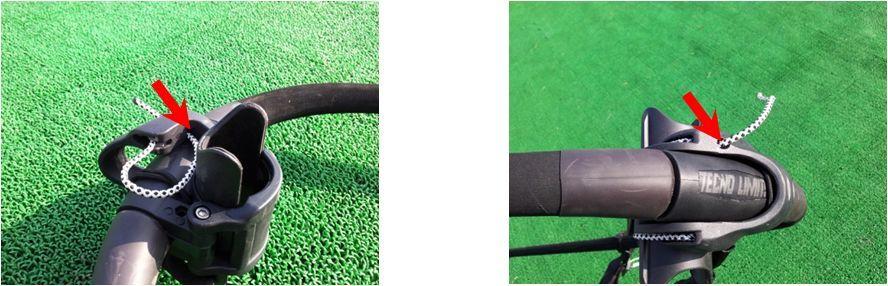

Boom front-end rigging
Pass the thread through the hole as shown above
for eliminating unexpected loosing of boom clamp.
