LIBERTY:::WIND SURF LIBERTY TRADING:::LIBERTY MAST

LIBERTY MAST

Further high performance mast!
Higher grade carbon named high modulus carbon is used. High modulus carbon brings faster and smooth reaction on strong sudden blow situation with light weight to ensure speed acceleration.

Further flexible combination mast!
Liberty carbon mast could be coupled with various combination. Different carbon percentage bottom and top could be combined. (e.g. 460/100% bottom and 430/80% percent combination) Mast could be arranged with 15cm step.

* High modulus carbon is using in various situation such as wing of a jet and shaft of golf clubs by high-strength, high-rebound and light weight characteristic.
IDEAL SAILS : LIBERTY, NORTH, SIMMER, SEVERNE, NEIL PRYDE, GAASTRA, EZZY, NAISH, MAUI SAILS

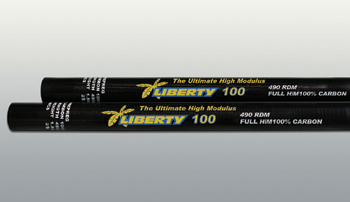

Ultimate High Modulus Carbon RDM 100%

Ultimate high modulus carbon mast is manufactured only with high-end T-40 high modulus carbon. Light wight, high strength and high reaction brings agile handling.

	IMCS	WEIGHT	PRICE [JPY]	TOP/BOTTOM [JPY]
430	21	1.4kg	115,000	62,000/70,000
460	25	1.6kg	120,000	65,000/77,000
490	29	1.8kg	127,000	68,500/82,000
520	32	2.1kg	140,000	76,000/90,000

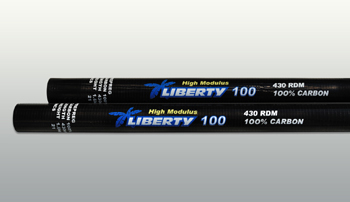

High Modulus Carbon RDM 100%

Two to three layer T-40 high modulus carbon is embedded. Smooth speed acceralation is guaranteed by faster and smooth reaction even on strong and sudden blow situation.

	IMCS	WEIGHT	PRICE [JPY]	TOP/BOTTOM [JPY]
370	17	1.3kg	65,000	35,000/39,500
400	19	1.4kg	67,000	36,000/41,000
430	21	1.6kg	71,000	37,000/41,500
460	25	1.8kg	76,000	41,000/47,000
490	29	2.3kg	87,000	46,000/52,000

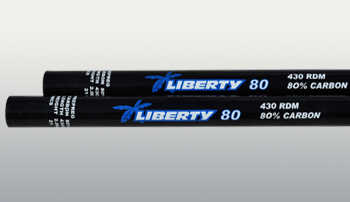

RDM Carbon 80%

	IMCS	WEIGHT	PRICE [JPY]	TOP/BOTTOM [JPY]
340	15	1.5kg	50,000	26,000/29,500
370	17	1.8kg	51,000	26,500/30,000
400	19	1.9kg	54,000	28,500/31,500
430	21	2.0kg	57,500	30,000/33,000
460	25	2.2kg	61,000	32,000/33,500

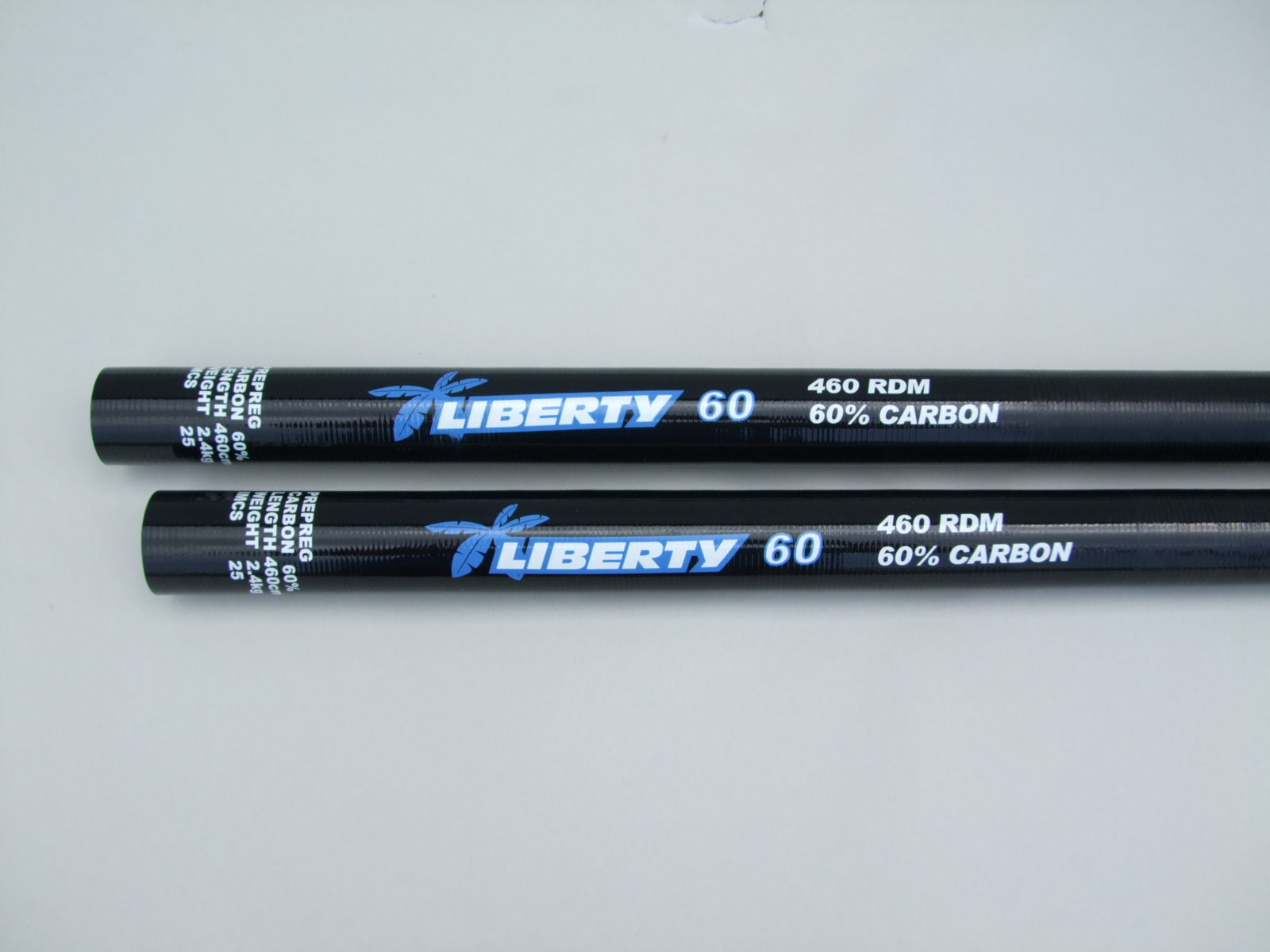

RDM Carbon 60%

	IMCS	WEIGHT	PRICE [JPY]	TOP/BOTTOM [JPY]
370	17	2.0kg	41,000	22,500/24,500
400	19	2.1kg	43,500	23,500/25,500
430	21	2.3kg	46,500	25,500/27,500
460	25	2.4kg	50,000	28,000/30,000

Bottom piece hold wind power while top piece flexibly reacts to bluster. LIBERTY SDM carbon mast is able to match-up with various sail by multi bend curves. 100% and 80% are able to purchase bottom and top separately.

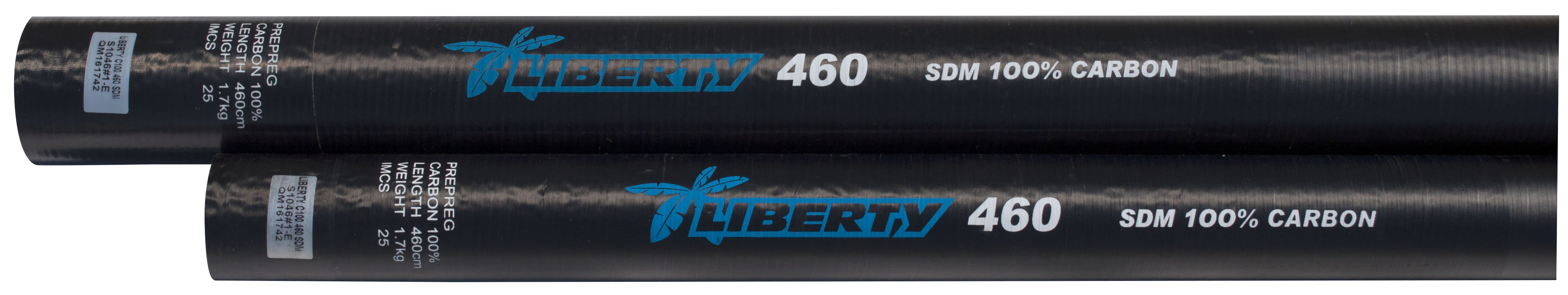

SDM Carbon 100%

	IMCS	WEIGHT	PRICE [JPY]	TOP/BOTTOM [JPY]
400	19	1.4kg	60,000	25,000/36,200
430	21	1.55kg	66,000	27,500/39,500
460	25	1.75kg	70,000	30,000/42,800
490	29	2.0kg	74,000	31,500/46,000
520	32	2.3kg	81,000	34,500/51,500

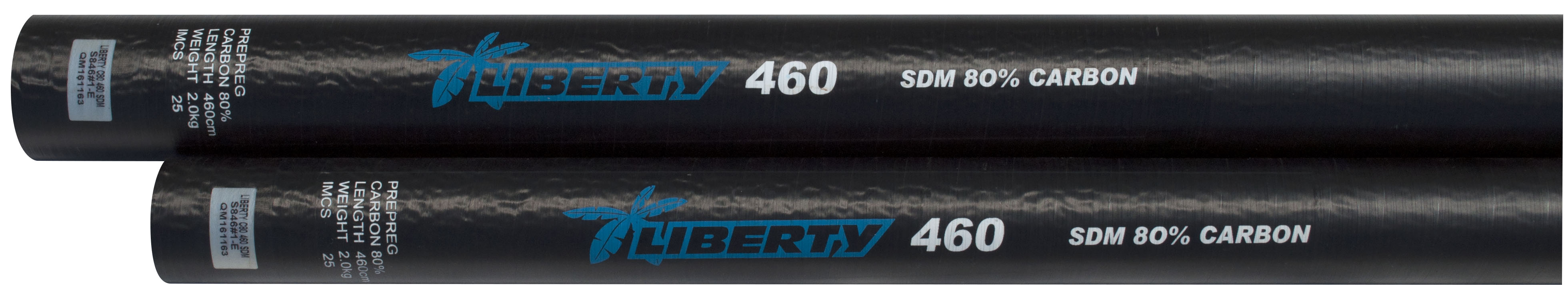

SDM Carbon 80%

	IMCS	WEIGHT	PRICE [JPY]	TOP/BOTTOM [JPY]
400	19	1.5kg	49,000	21,000/30,500
430	21	1.7kg	52,000	22,300/32,500
460	25	2.0kg	55,600	24,600/35,700
490	29	2.25kg	58,500	25,500/37,500
520	32	2.5kg	61,500	26,900/40,000

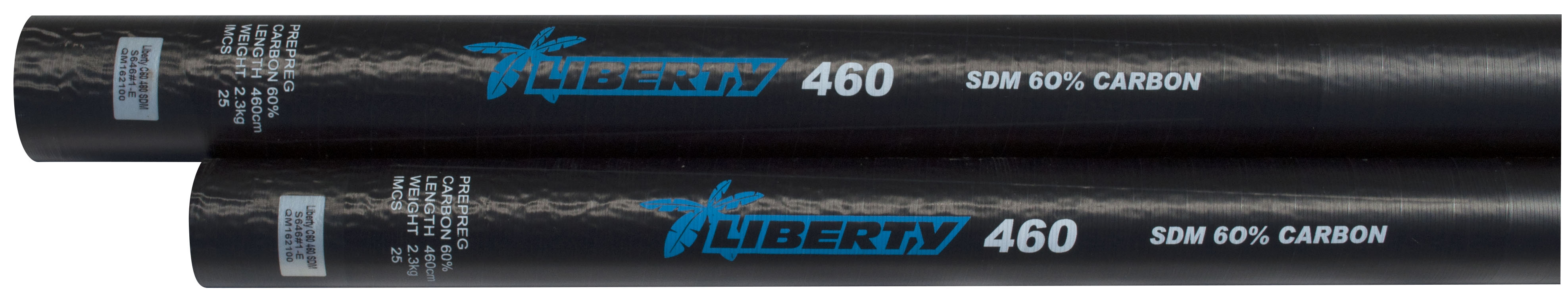

SDM Carbon 60%

	IMCS	WEIGHT	PRICE [JPY]	TOP/BOTTOM [JPY]
400	19	1.8kg	30,600	- / -
430	21	2.0kg	32,500	- / -
460	25	2.3kg	34,300	- / -
490	29	2.6kg	38,900	- / -
* No mast case

*RDM Carbon 80% and 60% don't use high modulus carbon.

*SDM 60% doesn't have top and bottom only option. Mast case is not complement.

30cm MIDDLE MAST EXTENDER

Exclusively design for LIBERTY RDM mast. Extender should be positioned in middle of a mast to ensure ideal luff curve. Able to setup one size longer mast. Extender makes a mast softer feeling.

For High Modulus Carbon 100%,80%,60% and 55%	JPY 18,000
For Ultimate High Modulus Carbon RDM	JPY 22,000
