WE WILL OFFER YOU A "OVERSEA PRICES", 20-30% discount.
Please feel free to ask price by e-mail. (click here)

LIBERTY SAIL 2020


SIZE㎡ LUFF BOOM BATTEN/CAM WEIGHT PRICE MAST
4.7 405 162 6/0 3.5 JPY 86,500 RDM 370
5.3 399 178 6/0 3.9 JPY 87,500 RDM 370
5.9 429 191 6/0 4.0 JPY 90,500 RDM 400
6.5 458 194 7/0 4.4 JPY 94,500 RDM 430
7.1 461 210 7/0 4.6 JPY 102,500 RDM 430
7.9 489 212 7/0 4.9 JPY 108,000 RDM 460
9.0 512 224 7/0 5.2 JPY 115,000 RDM 490
IDEAL MAST: LIBERTY,NORTH,GAASTRA,SIMMER,SEVERNE,EZZY,POWEREX
There is a possibility of changing luff lenght and boom size dimensions in future.
SIZE LUFF BOOM BATTEN/CAM WEIGHT PRICE MAST
5.0 432 170 6/0 4.0 JPY 87,000 RDM 400
6.0 459 184 6/0 4.2 JPY 92,500 RDM 430
7.0 486 195 7/0 4.5 JPY 101,500 RDM 460
8.0 528 205 7/0 4.8 JPY 122,000 SDM 490
IDEAL MAST: LIBERTY,NORTH,GAASTRA,SIMMER,SEVERNE,EZZY,POWEREX
There is a possibility of changing luff lenght and boom size dimensions in future.

●LIBERTY SAILS are available in France

LIBERTY SAILS sont disponibles en France
ECOLE DE VOILE DE LA COUARDE
Les Dauphins by ANTOINE ALBEAU

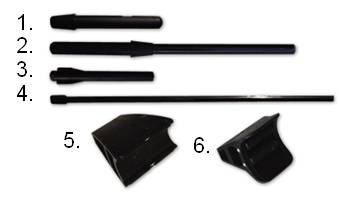

●Sail accessories
* Batten accessories
JPY
1. BC batten cap 150
2. BCR Batten cap & rod-batten(20cm) 300
3. BT Batten-tensioner 800
4. RBM rod-batten(8.5mm x 50-90cm) 1,200
   RBL rod-batten(8.5mm x 100-200cm) 1,800
* CAM
5. Race CAM S,M,L 1,500
6. Mini CAM M,L 1,000
7. TEKCAM RDM, SDM 1,900

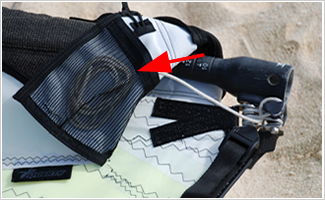

● Downhaul line handling


Lace line beside cleat and roll-up.
Put the line into pocket on sail. Sailer easily adjust down tension by just unroll line from the pocket.

● LIBERTY proves Zero cam sail potential.


Zero cam sail potential has been proved by LIBERTY.
Ishimaru, Kenjiro(Actor) achieved 2nd Japan record with LIBERTY LX7 zero cam sail.
Speed challenge becomes available on YouTube.
[click here for detail]

● Sail tuning

* Luff length(downhaul tension)

Value should be adjusted 1 to 2cm by mast diameter and manufactures. Also, down tension have to be adjusted by different wind condition.

* Foot belt

Able to get more power when fasten tight. Unfasten foot belt brings easy handling aiming to reduce sail power or elimiate board nose bumping.

* outhaul tension

Boom length should be adjusted per down tension. Boom length is decided after you fix down tension but not adjust by catalog spec. Minus outhaul tension setting is suitable in under condition, moderate wind, or deep down wind. Typical outhaul setting could be 0 to +3cm. In general, more outhaul tension in stronger wind condition to ensure easy to control of the sail.

* upper and lower outhaul grommet

Able to get more power with upper grommet. To use lower grommet when you feel sail heavy. Lower grommet makes sail control easily. In case of deficient power or hard to up wind, you can consider to use upper grommet.

Tuning guide[click here].
