| SIZE |
LUFF |
BOOM |
BATTEN/CAM |
WEIGHT |
PRICE |
MAST |
| 4.1㎡ |
372cm |
156cm |
6/0 |
3.3kg |
JPY 85,500 |
RDM/SDM 370 or 340 |
| 4.7 |
392 |
161 |
6/0 |
3.5 |
JPY 88,500 |
RDM/SDM 370 |
| 5.3 |
418 |
169 |
6/0 |
3.9 |
JPY 91,500 |
RDM/SDM 400 |
| 5.9 |
427 |
182 |
6/0 |
4.0 |
JPY 94,500 |
RDM/SDM 400 |
| 6.5 |
454 |
192 |
7/0 |
4.4 |
JPY 99,500 |
RDM/SDM 430 |
| 7.2 |
476 |
202 |
7/0 |
4.6 |
JPY 106,500 |
RDM/SDM 460 |
| 8.0 |
500 |
208 |
7/0 |
4.9 |
JPY 114,500 |
RDM/SDM 490 or 460 |
| 8.8 |
507 |
224 |
7/0 |
5.2 |
JPY 119,500 |
RDM/SDM 490 |
| 9.6 |
524 |
238 |
7/0 |
5.5 |
JPY 126,500 |
RDM/SDM 490 or 520 |
| IDEAL MAST: LIBERTY,NORTH,GAASTRA,SIMMER,SEVERNE,EZZY,POWEREX |
| There is a possibility of changing luff lenght and boom size dimensions in future. |
| SIZE |
LUFF |
BOOM |
BATTEN/CAM |
WEIGHT |
PRICE |
MAST |
| 5.3 |
418cm |
169cm |
6/0 |
3.7kg |
JPY 84,500 |
RDM/SDM 400 |
| 5.9 |
427 |
182 |
6/0 |
4.0 |
JPY86,500 |
RDM/SDM 400 |
| 6.5 |
454 |
192 |
7/0 |
4.5 |
JPY 89,500 |
RDM/SDM 430 |
| 7.2 |
476 |
202 |
7/0 |
4.8 |
JPY 92,500 |
RDM/SDM 460 |
| IDEAL MAST: LIBERTY,NORTH,GAASTRA,SIMMER,SEVERNE,EZZY,POWEREX |
| There is a possibility of changing luff lenght and boom size dimensions in future. |
|
●Sail accessories
|
Tuning batten set
 |

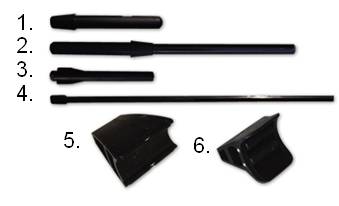

| * Batten accessories |
| 1. BC batten cap |
JPY 150 |
| 2. BCR Batten cap & rod-batten(20cm) |
JPY 300 |
| 3. BT Batten-tensioner |
JPY 800 |
| 4. RBM rod-batten(8.5mm x 50-90cm) |
JPY 1,200 |
| RBL rod-batten(8.5mm x 100-200cm) |
JPY 1,800 |
|
| * CAM |
| 5. Race CAM S,M,L |
JPY 1,500 |
| 6. Mini CAM M,L |
JPY 1,000 |
| 7. TEKCAM RDM, SDM |
JPY 1,900 |
|
|
* Carbon batten
| Super light 100% CARBON 8.5mm |
| SCBL 2.0m |
JPY 7,200 |
| SCBM 1.5m |
JPY 5,500 |
| SCBS 1.2m |
JPY 4,400 |
| CARBON TUBE 13.5mm |
| CBL 2.0m |
JPY 6,600 |
| CBM 1.5m |
JPY 5,000 |
| CBS 1.3m |
JPY 4,300 |
|
* Tuning batten set (8.5mm 100% super light carbon batten)
| Set |
Batten size |
Ideal sail size |
Price |
| S set |
(90, 80, 80, 60cm) |
5.9, 5.3 4.7, 4.1 |
JPY 11,000 |
| M set |
(120, 110, 100, 90cm) |
8.0, 7.2, 6.5 |
JPY 15,500 |
| L set |
(130, 120, 110, 100cm) |
9.6, 8.8, 8.0 |
JPY 17,500 |
| Full set |
(130, 120, 110, 90, 80, 70cm) |
9.6 - 4.1 (all size) |
JPY 22,000 |
Tuning manual.
|
|

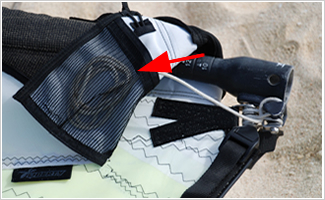

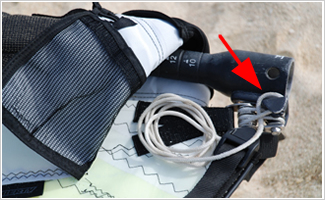

● Downhaul line handling
Lace line beside cleat and roll-up. |
Put the line into pocket on sail.
Sailer easily adjust down tension by just unroll line from the pocket. |
|
● LIBERTY proves Zero cam sail potential.
Zero cam sail potential has been proved by LIBERTY.
Ishimaru, Kenjiro(Actor) achieved 2nd Japan record with LIBERTY LX7 zero cam sail.
Speed challenge becomes available on YouTube.
[click here for detail]
● Sail tuning
* Luff length(downhaul tension)
Value should be adjusted 1 to 2cm by mast diameter and
manufactures. Also, down tension have to be adjusted by different wind condition.
* Foot belt
Able to get more power when fasten tight. Unfasten foot belt
brings easy handling aiming to reduce sail power or elimiate board nose bumping.
* outhaul tension
Boom length should be adjusted per down tension. Boom
length is decided after you fix down tension but not adjust by catalog spec.
Minus outhaul tension setting is suitable in under condition, moderate wind,
or deep down wind. Typical outhaul setting could be 0 to +3cm. In general,
more outhaul tension in stronger wind condition to ensure easy to control
of the sail.
* upper and lower outhaul grommet
Able to get more power with upper grommet. To use lower
grommet when you feel sail heavy. Lower grommet makes sail control easily.
In case of deficient power or hard to up wind, you can consider to use upper
grommet.
Tuning guide[click here].
