WE WILL OFFER YOU A "OVERSEA PRICES", 20-30% discount.
Please feel free to ask price by e-mail. (click here)


SIZE㎡ LUFF BOOM BATTEN/CAM WEIGHT PRICE MAST
4.7 392 165 6/0 3.5 JPY 96,000 RDM/SDM 370
5.3 425 175 6/0 3.9 JPY 97,000 RDM/SDM 400
5.9 429 191 6/0 4.0 JPY 100,000 RDM/SDM 400
6.5 458 194 7/0 4.4 JPY 105,000 RDM/SDM 430
7.2 481 209 7/0 4.6 JPY 115,000 RDM/SDM 460
8.0 508 212 7/0 4.9 JPY 120,000 RDM/SDM 490
8.8 510 226 7/0 5.2 JPY 129,000 RDM/SDM 490
9.6 526 240 7/0 5.5 JPY 132,000 RDM/SDM 490 or 520
IDEAL MAST: LIBERTY,NORTH,GAASTRA,SIMMER,SEVERNE,EZZY,POWEREX
There is a possibility of changing luff lenght and boom size dimensions in future.
SIZE LUFF BOOM BATTEN/CAM WEIGHT PRICE MAST
5.3 419cm 178cm 6/0 3.7kg JPY 85,000 RDM/SDM 400
5.9 425 191 6/0 4.0 JPY87,500 RDM/SDM 400
6.5 454 193 7/0 4.5 JPY 91,500 RDM/SDM 430
7.2 477 206 7/0 4.8 JPY 94,500 RDM/SDM 460
IDEAL MAST: LIBERTY,NORTH,GAASTRA,SIMMER,SEVERNE,EZZY,POWEREX
There is a possibility of changing luff lenght and boom size dimensions in future.
●Sail batten
PWA top athletes proven Carbon tube batten.
Custom baten surprisingly powerful way to make sail stable in strong wind condition as well as keep power in light wind conditon. LIBERTY custom batten has double strongness ,three times from grassfiber tube, which realizes more control on strong wind and more power in light wind.
For 7 batten sail - 3 pice (4,5 and 6th batten from top) JPY 25,000
For 8 batten sail - 4 pice (4,5,6 and 7th batten from top) JPY 29,000
●Sail accessories

Tuning batten set

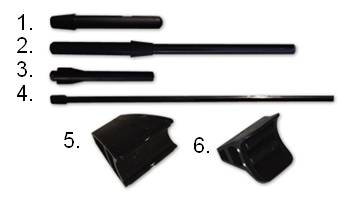

* Batten accessories
1. BC batten cap JPY 150
2. BCR Batten cap & rod-batten(20cm) JPY 300
3. BT Batten-tensioner JPY 800
4. RBM rod-batten(8.5mm x 50-90cm) JPY 1,200
   RBL rod-batten(8.5mm x 100-200cm) JPY 1,800
* CAM
5. Race CAM S,M,L JPY 1,500
6. Mini CAM M,L JPY 1,000
7. TEKCAM RDM, SDM JPY 1,900
* Carbon batten

  Super light 100% CARBON 8.5mm
   SCBL 2.0m JPY 7,200
   SCBM 1.5m JPY 5,500
   SCBS 1.2m JPY 4,400
  CARBON TUBE 13.5mm
   CBL 2.0m JPY 6,600
   CBM 1.5m JPY 5,000
   CBS 1.3m JPY 4,300

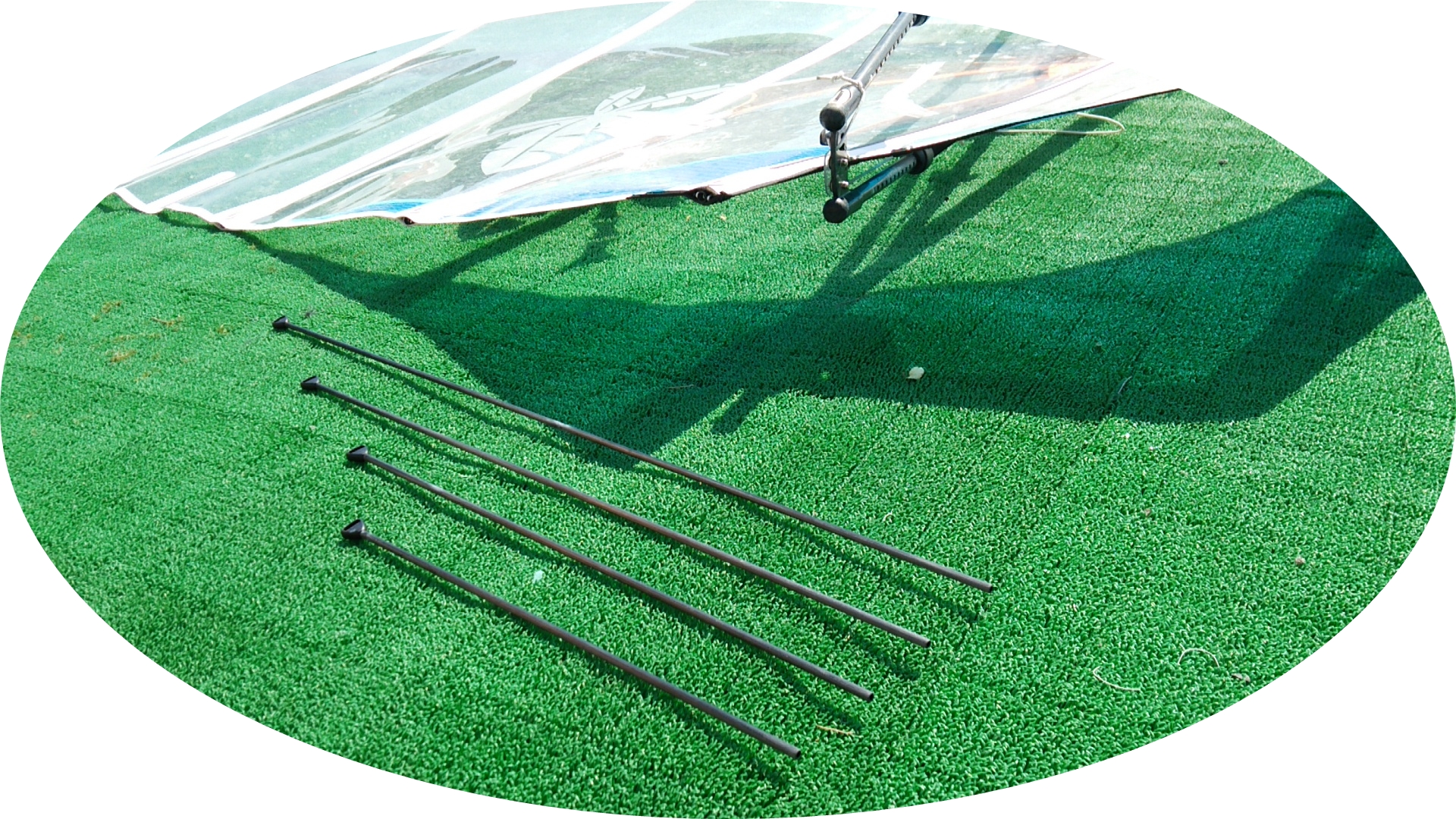

* Tuning batten set (8.5mm 100% super light carbon batten)
   Set Batten size Ideal sail size Price
   S set (90, 80, 80, 60cm) 5.9, 5.3 4.7, 4.1 JPY 12,000
   M set (120, 110, 100, 90cm) 8.0, 7.2, 6.5 JPY 16,500
   L set (130, 120, 110, 100cm) 9.6, 8.8, 8.0 JPY 18,500
   Full set (130, 120, 110, 90, 80, 70cm) 9.6 - 4.1 (all size) JPY 23,000
   Tuning manual.
● Downhaul line handling

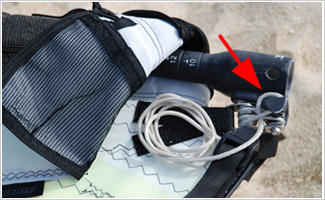

Lace line beside cleat and roll-up.

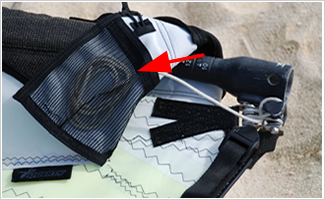

Put the line into pocket on sail. Sailer easily adjust down tension by just unroll line from the pocket.

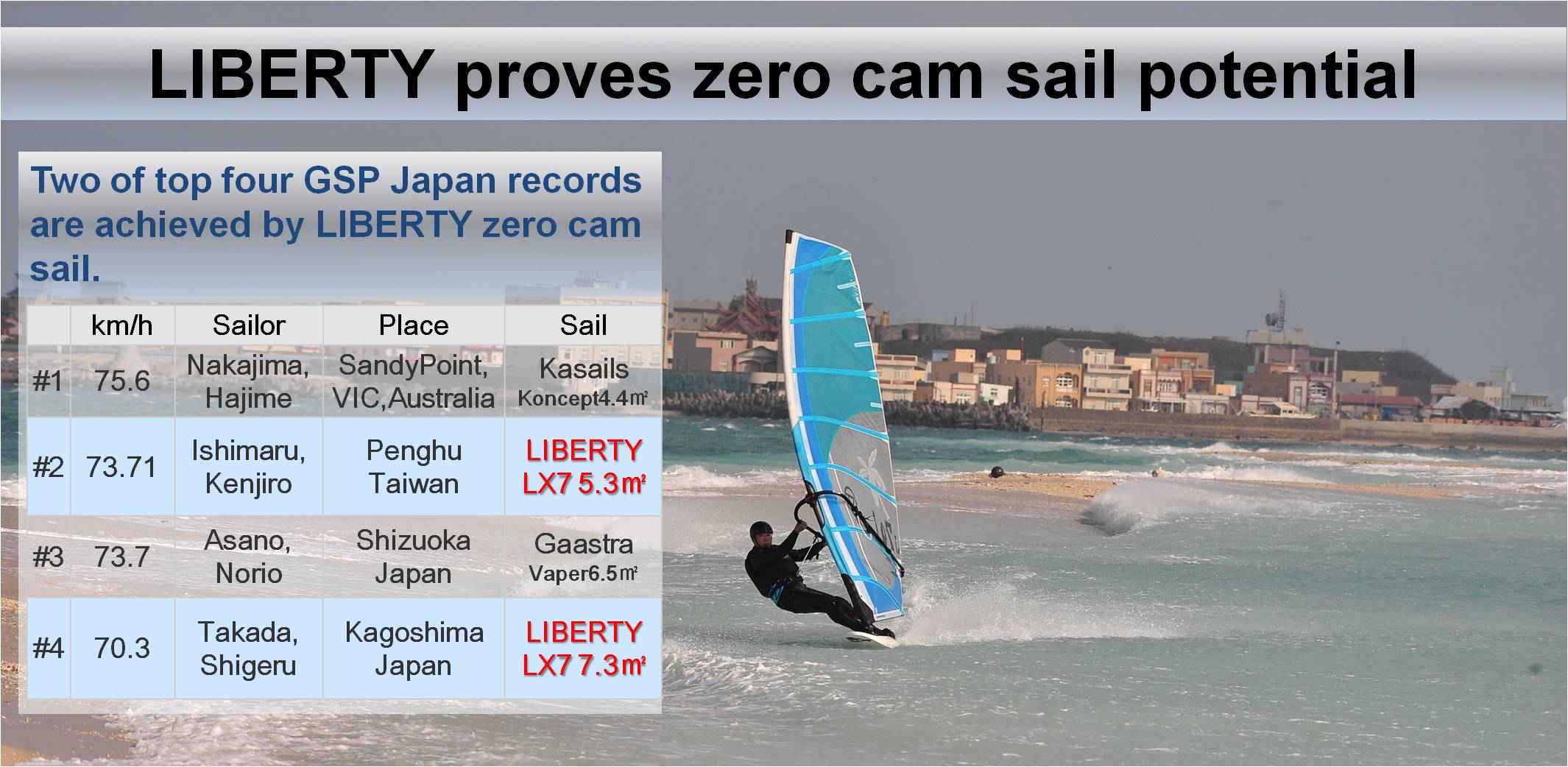

● LIBERTY proves Zero cam sail potential.


Zero cam sail potential has been proved by LIBERTY.
Ishimaru, Kenjiro(Actor) achieved 2nd Japan record with LIBERTY LX7 zero cam sail.
Speed challenge becomes available on YouTube.
[click here for detail]

● Sail tuning

* Luff length(downhaul tension)

Value should be adjusted 1 to 2cm by mast diameter and manufactures. Also, down tension have to be adjusted by different wind condition.

* Foot belt

Able to get more power when fasten tight. Unfasten foot belt brings easy handling aiming to reduce sail power or elimiate board nose bumping.

* outhaul tension

Boom length should be adjusted per down tension. Boom length is decided after you fix down tension but not adjust by catalog spec. Minus outhaul tension setting is suitable in under condition, moderate wind, or deep down wind. Typical outhaul setting could be 0 to +3cm. In general, more outhaul tension in stronger wind condition to ensure easy to control of the sail.

* upper and lower outhaul grommet

Able to get more power with upper grommet. To use lower grommet when you feel sail heavy. Lower grommet makes sail control easily. In case of deficient power or hard to up wind, you can consider to use upper grommet.

Tuning guide[click here].
